Focusing on researching and producing large scale crushing equipment, Liming Heavy Industry can provide advanced and efficient machine for stone crushing line with each capacity. Not only that, we will give integrated solution according to material type, granularity requirement and application area.
is one of the large scale stone crushing projects. There are jaw crusher, hydraulic cone crusher and sand making machine as main machines, vibrating feeder, vibrating screen as auxiliary equipment. This line processes granite mainly.
Dumper sends granite below 1020mm to vibrating feeder which will send these materials to jaw crusher immediately. Jaw crusher doesn’t crush granite primarily until the size ranges from 150mm to 300mm, and then vibrating feeder sends these materials to hydraulic cone crusher for medium crushing. Vibrating screen will screen granite over 40mm to go back to cone crusher for reprocessing, and materials below 40mm can go to sand making machine for shaping. After shaping and screening, belt conveyor will send materials to finished product area.

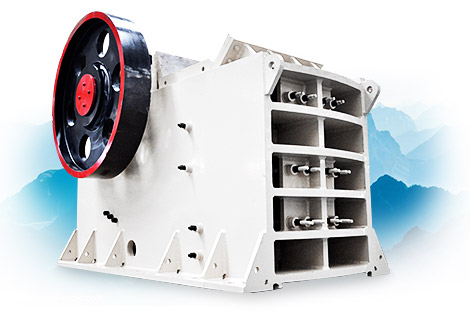

Jaw crusher is the first process of mineral crushing line, which can crush many kinds of ores whose compressive strength below 320MPa. This machine often combines with cone crusher, impact crusher and sand making machine to build a stone crushing production line, which can be widely used in mining, metallurgy, construction, power, water conservancy, traffic,
Optimized deep cavity, heavy eccentric shaft, digital analysis of components, all make the efficiency improved by 15%-30%.
Distinctive centralized lubrication system makes lubrication convenient. The maintenance work is little and operation is simple.
There is low noise during production. And this machine can be equipped with dust removal equipment, which meets national environmental standard very well.

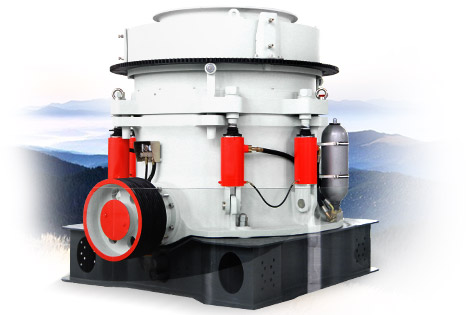

Based on German advanced technology and Chinese new design, HPT Hydraulic Cone Crusher is produced and used in two or three stage crushing in metal mine and construction. Because of advantages of large capacity, high efficiency, it is widely used to crush hard stones.
fixed spindle and small ball plane shaft are reciprocal, which makes efficiency improved by 5%-15%
This machine integrates crushing stroke, crushing speed and crushing chamber together, which makes capacity improved 35%-60%.
Lamination crushing principle makes final products well-distributed. The quantity of acicular aggregate is reduced.

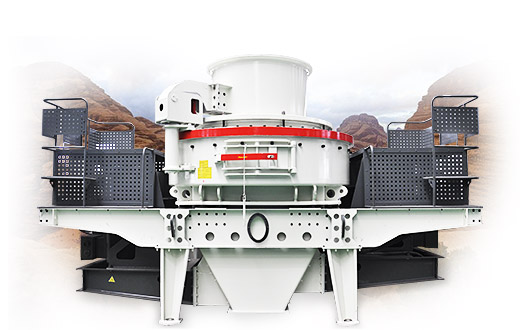

In order to improve energy utilization rate and crushing efficiency, reduce wear rate, lengthen maintenance cycle, VSI5X Sand Making Machine is launched to market as new and efficient equipment. It takes advantages of high efficiency, large capacity, convenient maintenance and wide application. This machine can satisfy production demand.
This machine adopts abrasion resistant and high temperature resistant material coming from America, quality bearing coming from Japan, Sweden, the United States. Besides, efficient and low-noise motor is included.
Combination type hammer helps reduce costs over 30%, because it just change hammer when there is abrasion. Diamond impact block and secondary hammer can reduce damage probability of vertical plate.
Dual purpose powder tray can switch from one feeding method to the other. Special sealing structure makes there is no oil leakage. Hydraulic cap opening device from Japan helps maintenance convenient.
Equipment:Vibrating Feeder GZD1300×4900, Jaw Crusher PE900×1200, Hydraulic Cone Crusher HST250/S2, European Type Impact Crusher PFW1318, Vibrating Screen 2YZS2460 and 2YZS2160
Capacity:250t/h
Application:bridge and road construction
Input size:700mm
Output size:0-5mm, 5-15mm,15-25mm
Equipment:Vibrating Feeder GZG1300×4900, Jaw Crusher PE900×1200, 2 sets of Simos Cone Crusher CSB160, 2 sets of Vibrating Screen 3YZS1860
Country: Philippines
Raw material: granite
Capacity: 300t/h
Application:quarry
