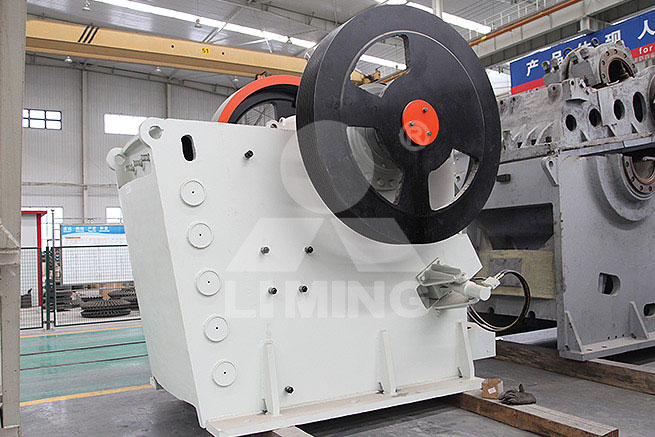

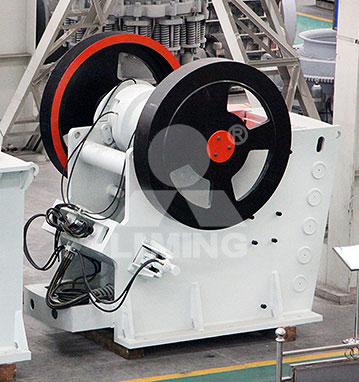

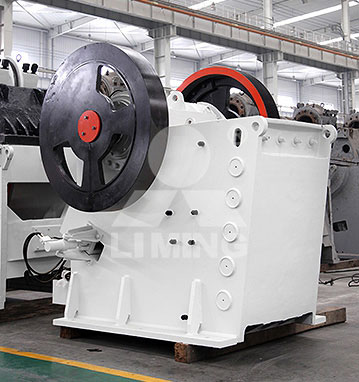

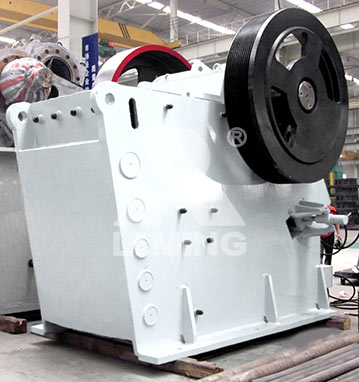

1. Central lubrication device is installed, so the bearing is easy to be lubricated.
-
2.Wedge block is installed to adjust the discharging part, which is simpler, safer and faster than the old spacer on the crusher.
-
3.Movable jaw assembly is made by cast steel, and it is durable.
-
4.Integral cast steel structure is adopted for bearing seat, which matches well with the crusher frame, and radial strength of the bearing seat is highly strengthened.
-
5.Crushing chamber adopts “V” structure which could make actual feed width comply with nominal one.
-
6. Bearing is used with larger model and higher load. Its higher load capacity and effective oil seal will lengthen the life of bearing.
-
7. Teeth-shape side plate makes the available area of jaw plate longer, and enhances the capacity.
-
8. Pressing bar and supporting bar are used to fix the jaw plate, which makes installation faster.
-
9. Heavy type protecting plate is installed for bearing seat, in order to avoid the damage of bearing seat.
-
10. Supporting bar under jaw crusher protects movable haw and frame from being worn down.
Overview
Henan Liming Heavy Industry Science & Technology Co. , Ltd. is the leading enterprise of rock & mineral processing equipment in the world. Since the end of the 20th century, we’ve installed more than 100, 000 crushing plants all over the world. Nowadays, PEW European type jaw crusher has already become the most popular equipment in the world without controversy. It is the first choice for hard and strong abrasion material.
Working Principle
The electrical motor transmits power to the eccentric shaft through v-belt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw move upwards and downwards. This movement would trigger the toggle plate to push the movable jaw forwards and backwards. When the movable jaw moves forth toward the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which meet the requirement will be discharged from the outlet. Since the motor keeps working, the crusher will crush and discharge periodically to achieve mass production.
Specifications
|
Model |
Feed opening (mm) |
Maximum feed size(mm) |
CSS min-max(mm) |
Capacity(tph) |
Power KW(HP) |
Dimension (L×W×H) (mm) |
Weight (t) |
|
PEW200×1300 |
200X1300 |
150 |
10-30 |
12-35 |
30(40) |
1320X2150X1176 |
6 |
|
PEW250×1000 |
250X1000 |
220 |
20-40 |
15-50 |
30(40) |
1400X1850X1310 |
6 |
|
PEW250×1200 |
250X1200 |
220 |
20-40 |
20-50 |
37(50) |
1450X2150X1175 |
7 |
|
PEW400×600 |
400X600 |
350 |
35-85 |
15-70 |
37(50) |
1920X1460X1840 |
7.5 |
|
PEW760 |
760X1100 |
620 |
75-200 |
150-350 |
110(150) |
2950X2360X2760 |
24 |
|
PEW860 |
840X1100 |
720 |
100-225 |
200-500 |
132(175) |
3300X2320X3120 |
32 |
|
PEW1100 |
1100X1200 |
940 |
150-275 |
300-650 |
185(250) |
4140X2660X3560 |
59.2 |
Notice:
1. Any change of European Type Jaw Crusher technical data shall not be advised additionally.
2. The Model PEW860 and PEW1100 with lubrication station and hydraulic adjustment station.
