1.Application from one single mobile plant to multiply combined plants
-
2.Equipped with high-efficiency jaw crusher as primary machine
-
3.Compact chassis frame, short length of transportation
-
4.Large capacity with pre-screening function
-
5.Optional switch for host to satisfy customer's need
-
6.Quick opening process with flexible parking function
-
7.Professional services for global customers
Overview

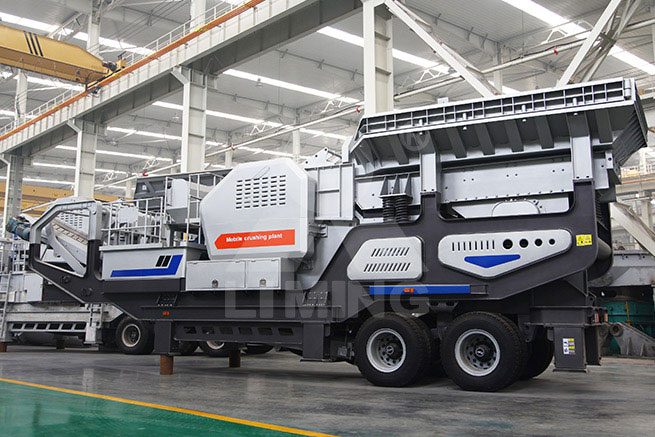

Primary Crushing Plant is equipped with high-efficiency jaw crusher and impact crusher, and millions of crushers have been installed worldwide since the end of the 20th century.
There are 8 types of jaw crushers and 4 types of impact crushers you can choose for mobile crushing, whose final products are good shape. The greatest advantages of European Type Crusher are that the final products are cube-shaped and well-distributed. Besides, there are no cracks in products.
Working Principle
There are crushing unit interchange system and feeding unit interchange system to meet different requirements. That is to say, in a short time, vibrating feeders with different models are interchangeable in the same mobile crusher, and jaw crusher and impact crusher can interchange, either. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers.
Specifications
|
Model |
Feeding Equipment |
Crushing Equipment |
Max. preparedness capacity(t/h) |
Overall Dimension |
Weight (t) |
|
Model |
Model |
Max. Feeding Size(mm) |
output
(t/h) |
Transport dimension (need tear-down) |
|
KE600-1 |
TSW0936 |
PE600×900Ⅱ |
500 |
90-180 |
100-210 |
12150×2600×3950(mm) |
43 |
|
KE750-1 |
TSW1139 |
PE750×1060 |
630 |
110-300 |
130-330 |
13000×2850×4400mm |
61 |
|
KE760-1 |
TSW1139 |
PEW760 |
640 |
150-310 |
170-330 |
13000×2800×4200(mm) |
55 |
|
KE860-1 |
TSW1345 |
PEW860 |
720 |
200-420 |
230-450 |
14600×3000×4500(mm) |
64 |
|
KE1100-1 |
TSW1548 |
PEW1100 |
930 |
300-600 |
350-650 |
14050×2900×4000(mm) |
96 |
|
KJ98-1 |
TSW1139 |
HJ98 |
560 |
110-350 |
130-370 |
12150×2600×3950mm |
44 |
|
KJ110-1 |
TSW1345 |
HJ110 |
660 |
215-490 |
235-520 |
13200×3000×4400(mm) |
58 |
|
KJ125-1 |
TSW1345 |
HJ125 |
800 |
280-620 |
310-650 |
14600×3000×4500(mm) |
68 |
|
KF1214Ⅱ-1 |
TSW0936 |
PFW1214Ⅱ |
500 |
110-190 |
120-210 |
12150×2600×3980(mm) |
48 |
|
KF1214Ⅱ-1 |
TSW1139 |
PFW1214Ⅱ |
500 |
110-190 |
140-230 |
13000×2800×4200(mm) |
53 |
|
KF1315Ⅱ-1 |
TSW1345 |
PFW1315Ⅱ |
600 |
180-280 |
190-310 |
14600×3100×4500(mm) |
61 |
|
KF1415Ⅱ-1 |
TSW1548 |
PFW1415Ⅱ |
700 |
280-450 |
310-480 |
14050×3000×4000(mm) |
74 |
