1.Equipped with vertical shaft impact crusher which has advantages of high performance, large crushing ratio and powerful crushing.
-
2.Excellent product shape in cubic
-
3.Application from one single mobile plant to multiply combined plants
-
4.Optional switch for host to satisfy customer's need
-
5.Quick opening process with flexible parking function
Overview
VSI Series Vertical Shaft Impact Crusher is the first choice for the artificial sand making industry, which adopts world-level manufacturing technology. VSI5X Efficient Vertical Shaft Impact Crusher is recognized as the new generation product owning many patents, which combines professional crushing technics and mechanical manufacturing together.

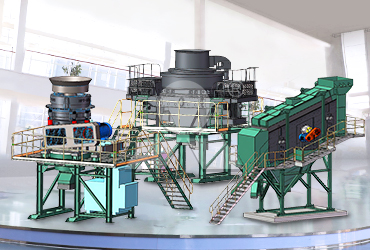

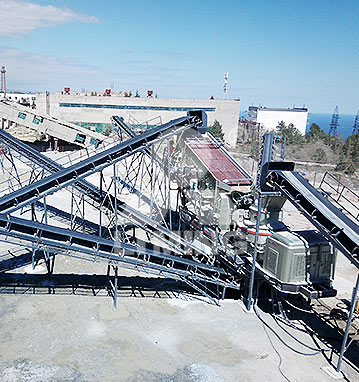

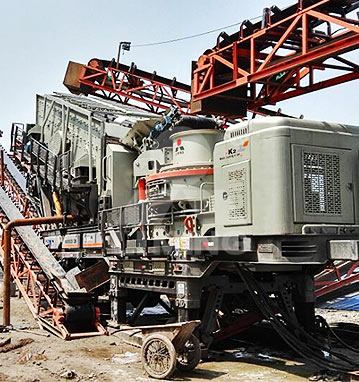

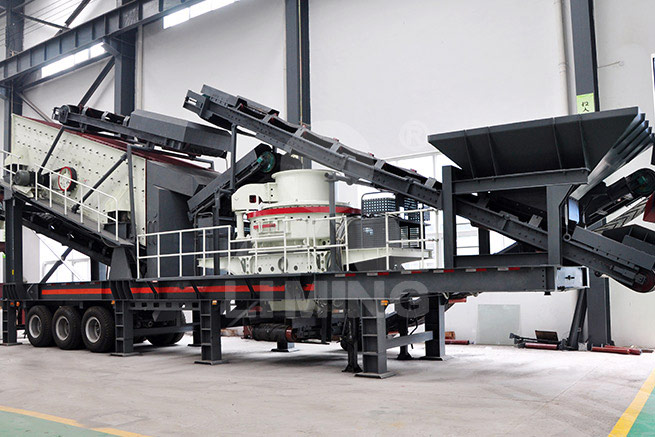

Equipped with 2 kinds of VSI series and 2 kinds of VSI5X series respectively, VSI Shaping And Screening Plant has the advantages of well-distributed final product size and high capacity up to 280t/h.
Working Principle
A body in common use of 10 kinds of models, and crushing unit interchange system reduces the investment and production costs. In a short time, crushers with different models are interchangeable in the same mobile crusher. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers.
Specifications
|
Model |
Feeding Equipment |
Crushing Equipment |
Max. preparedness capacity(t/h) |
Overall Dimension |
Weight (t) |
|
Model |
Model |
Max. Feeding Size(mm) |
output
(t/h) |
Transport dimension (need tear-down) |
|
KV8518-2 |
3YZS1848 |
VSI8518 |
35 |
100-130 |
120-150 |
14200×3000×4500(mm) |
41 |
|
KV8522-2 |
3YZS1860 |
VSI5X8522 |
35 |
120-200 |
140-230 |
14200×3000×4500(mm) |
45 |
|
KV9526-2 |
3YZS1860 |
VSI9526 |
40 |
150-190 |
170-220 |
14200×3000×4500(mm) |
48 |
|
KV9532-2 |
3YZS1860 |
VSI5X9532 |
40 |
180-280 |
200-300 |
14200×3000×4500(mm) |
49 |
