1.Equipped with vertical shaft impact crusher which has advantages of high performance, large crushing ratio and powerful crushing.
-
2.Excellent product shape
-
3.Application from one single mobile plant to multiply combined plants
-
4.Optional switch for host to satisfy customer's need
-
5.Quick opening process with flexible parking function
Overview

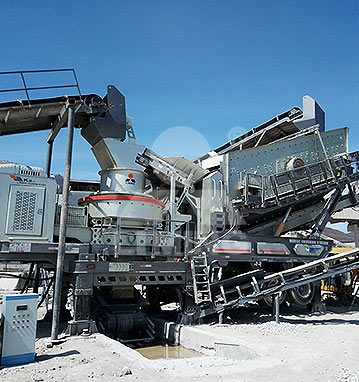

Tertiary Crushing And Washing Plant is a suitable choice for sand making in construction and road-building. And the plant equipped screw sand washing machine is used for washing, grading and cleaning in metallurgy, construction, hydropower industry, etc.
Equipped with 2 kinds of VSI series, 2 kinds of VSI5X series and 4 kinds of high-efficiency cone crusher with fine cavity respectively, Tertiary Crushing And Washing Plant with a maximum capacity of 280t/h can satisfy customers’ different requirements.
Working Principle
A body in common use of 10 kinds of models, and crushing unit interchange system reduces the investment and production costs. In a short time, crushers with different models are interchangeable in the same mobile crusher. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers.
Specifications
|
Model |
Feeding Equipment |
Crushing Equipment |
Max. preparedness capacity(t/h) |
Overall Dimension |
Weight (t) |
|
Model |
Model |
Max. Feeding Size(mm) |
output
(t/h) |
Transport dimension (need tear-down) |
|

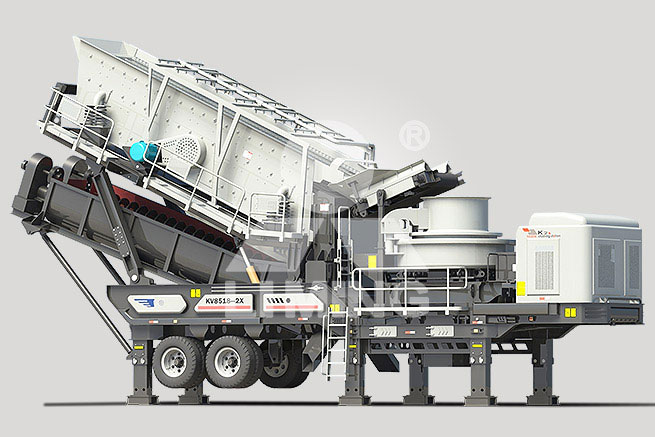

KV8518-2X |
3YZS1848 |
VSI8518 |
35 |
100-130 |
120-150 |
13700×2950×4500（mm） |
52 |
|
XL-915 |
|
KV8522-2X |
3YZS1860 |
VSI5X8522 |
35 |
120-200 |
140-230 |
13700×2950×4500（mm） |
55 |
|
2XL-915 |
|
KV9526-2X |
3YZS1860 |
VSI9526 |
40 |
150-190 |
170-220 |
13700×2950×4500（mm） |
58 |
|
2XL-915 |
|
KV9532-2X |
3YZS1860 |
VSI5X9532 |
40 |
180-280 |
200-300 |
13700×2950×4500（mm） |
59 |
|
2XL-915 |
|
KC75-2X |
3YZS1848 |
CS75B |
102-175 |
A |
A+(20~50) |
13700×2950×4500（mm） |
53 |
|
XL-915 |
|
KC160-2X |
3YZS1860 |
CS160B |
168-192 |
A |
A+(20~50) |
13700×2950×4500（mm） |
68 |
|
XL-915 |
|
KH300-2X |
3YZS1860 |
HPT300 |
84-168 |
A |
A+(30~70) |
13700×2950×4500（mm） |
59 |
|
2XL-915 |
|
KT250-2X |
3YZS1860 |
HST250H1 |
88-360 |
A |
A+(30~70) |
13700×2950×4500（mm） |
58 |
|
2XL-915 |
