1.Excellent power engine. The crawler crushing plant adopts Commins diesel engine with economic oil consumption, quiet and stable performance under working condition. It provides a reliably, economically, and environment friendly power source. It is available to add military preheating starter on plant, which enables the plant easily start under -25℃ low temperature.
-
2.Solid crawler chassis. The crawler chassis adopts ship-shaped structure, owns strength of high intensity, low ground pressure ratio, and terrific passing ability. It has great flexibility to cross over hilly and wet terrain.
-
3.Powerful hydraulic motor. The hydraulic motor is technically matured, provides the plant powerful driving force with great reliability. The driving system applied total-power variable open hydraulic system, has superior performance and stability under working, and it takes full utilization of engine power. The main hydraulic elements such as pump and valve are imported from Japan.
-
4.Easy operating system. The servo guide operating system is imported, makes operation simple and convenient. The intelligent system ensures accurate control, and makes the plant move with infinitely variable speeds.
-
5.High efficiency equipment. Crushing and screening equipment utilizes our company independent produced equipment. The on-board equipment is with compact structure and remarkable performance. The screening equipment adopts 20°dip angle, and its screening productivity is fully efficient.
Overview

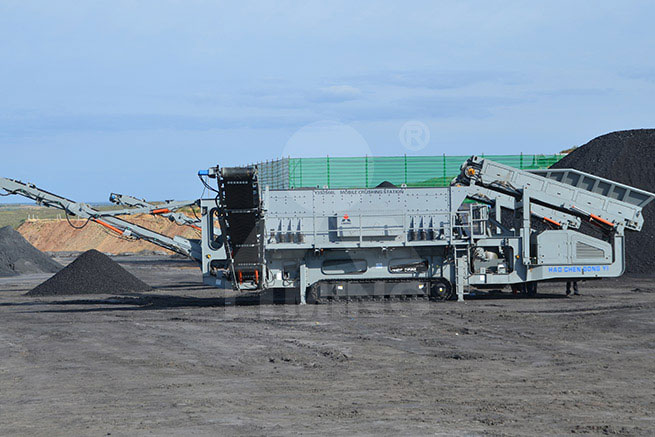

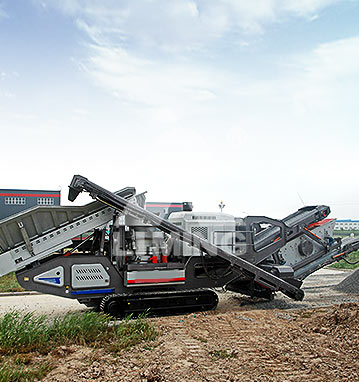

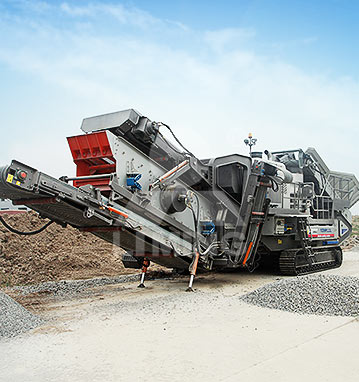

The crawler type mobile crushing plant adopts hydraulic driven crawler chassis to load crushing and screening equipment. Our company independent has researched the product according to market requirement, and owns the total intellectual property rights. This plant has exceeded international advanced standard by the advantage of excellent performance, remarkable reliability and streamlined structure.
Working Principle
The crawler type mobile crushing plant, a serialization equipment for rocks and construction waste, extending the concept of coarse crushing, fine crushing. Standing on the customers’ position, the plant removes obstacles such as field, surroundings, etc. unfavorable factors which influence crushing. The crawler type mobile crushing plant aims to provide convenient, high-efficiency, low-cost installation for customers based on the materials crushed at its closest. According to requirements of different crushing processes, you can choose the procedure called “crush first and then screen” or “screen first and then crush”. Mobile crushing plant is flexible in use, it can try its best to satisfy customers’ demands.
Specifications
|
Series |
Standard Model |
Feeding equipment |
Crushing equipment |
Transportation Dimension(mm) |
Weight (ton)( Approximately) |
|
Model |
Model |
Disassembly L×W×H |
|
Crawler type mobile jaw/impact crusher |
YG935E69L |
GZD960×3600 |
PE600×900 |
12450X2800X3800 |
40 |
|
YG1139EW760L |
GZD1100×3900 |
PEW760 |
13460X3000X3800 |
50 |
|
YG1345HJ110L |
GZD1300×4500 |
HJ110 |
14212X3000X3800 |
50 |
|
YG1345EW860L |
GZD1300×4500 |
PEW860 |
14827X3000X3800 |
63 |
|
YG1139FW1214IIL |
GZD1100×3900 |
PFW1214II |
13913X3000X3750 |
50 |
|
YG1345FW1315IIL |
GZD1300×4500 |
PFW1315II |
14340X3000X3800 |
63 |
|
Series |
Standard Model |
Feeding equipment |
Crushing equipment |
Transportation Dimension（mm) |
Weight (ton)( Approximately) |
|
Model |
Model |
Disassembly L×W×H |
|
Crawler type cone crusher plant |
YHST16L |
GLD-10*4.5 |
HST160H1 |
12000x2800x3493 |
35 |
|
YHST25L |
GLD-12*4.8 |
HST250 |
14766x3000x3700 |
50 |
|
YHPT300L |
GLD-12*4.8 |
HPT300 |
14800x3000x3700 |
50 |
|
Series |
Standard Model |
Feeding equipment |
Crushing equipment |
Transportation Dimension(mm) |
Weight (ton)( Approximately） |
|
Model |
Model |
Disassembly L×W×H |
|
Crawler type mobile screening plant |
Y2S1860AL |
GLD-14/5.25 |
2YZS1860 |
17800X3200X3700 |
36.5 |
|
Y3S1860BL |
GLD-12/3 |
3YZS1860 |
17000X3300X3600 |
38 |
|
Y3S1848BL |
GLD-12/3.8 |
3YZS1848 |
17000X3300X3600 |
36 |
|
Y2S1848BL |
GLD-12/3.8 |
2YZS1848 |
17000X3300X3500 |
34 |
